- Perform incident investigations with one analyser
- Test tightness, let by & gas pressures to 2psi or 160mbar
- Test appliance CO emissions up to 100,000pm or 10%
- Measure O2 & CO2 flue gas emissions without reference to fuel
- LINK multiple KANE-COL CO monitors to combine ambient air tests
- LINK KANE-DTHA2 for real time indoor air measurements
- Set, see & save timed tests
- Perform BS7967 2 minute Appliance Sweep test
- Send results to KANE LIVE app or optional printer
- UKAS Calibration Certificate as standard
Features
- Long life, fast response CO, CO2 & O2 sensors with over range protection
- KANE LINK combines KANE-IIA measurements with optional KANE devices
- Easy to set up, see, save & send tests
- Large colour screen displays all KANE LINK devices
- See, save & send tests to KANE LIVE app or optional KANE-IRP3 printer
- Rugged, battery powered go anywhere analyser
- UKAS calibration certificate supplied as standard
- 10 year warranty when serviced & recertified by KANE
- Backed by KANE CARE - our promise to never let you down or your money back
Applications
- CO incident investigation tests
- CMDDA 5, 15 & 30 minute appliance & room CO tests
- BS7967 2 minute appliance sweep tests
- Multiple room tests with up to 4 KANE-COL CO monitors linked to one analyser
- Simultaneous appliance & 4 room CO test
- Home & work air movement with optional KANE-DTHA2 anemometer
Measures
- Differential pressure to 2psi, -160 to +160mBar
- CO to 10,000ppm with over range protection
- CO2 & O2 to 20.9%
- Differential Temperature -20 to +1350ºC
- Combined appliance & room CO tests with up to 4 optional KANE-COL CO monitors
- Indoor air movement with optional KANE-DTHA2 anemometer

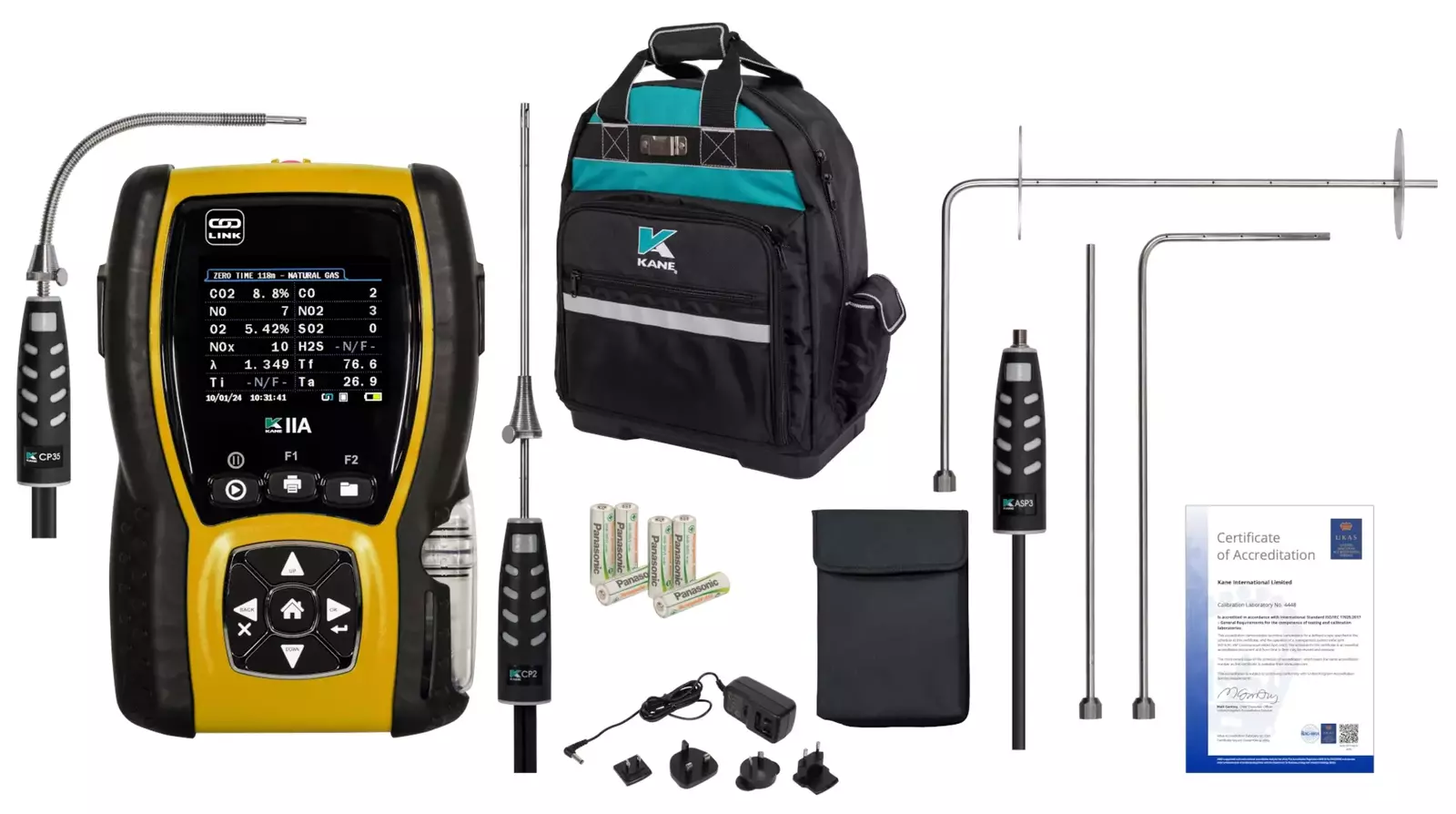

Box Contents
KANE-IIA KIT
- KANE-IIA KIT includes 4 x KANE-COL CO monitors with UKAS certificates & 4 x CPS1 probe stands
KANE-IIA sensor & LINK options
- NO 0-5,000ppm
- KANE-DTHA2 wireless anemometer
- KANE-COL wireless room CO monitor
- KANE-WPCP2 wireless temp clamp probe x 2
- KANE-WPP2 wireless pressure probes x 2
Service Price
| YEAR 1 | YEAR 2 | YEAR 3 | YEAR 4 | YEAR 5 |
|---|---|---|---|---|
| £420 | £420 | £420 | £420 | £630 |
Calibration or Conformity Certificates included, as appropriate
All prices are in £ sterling and are exclusive of VAT.
