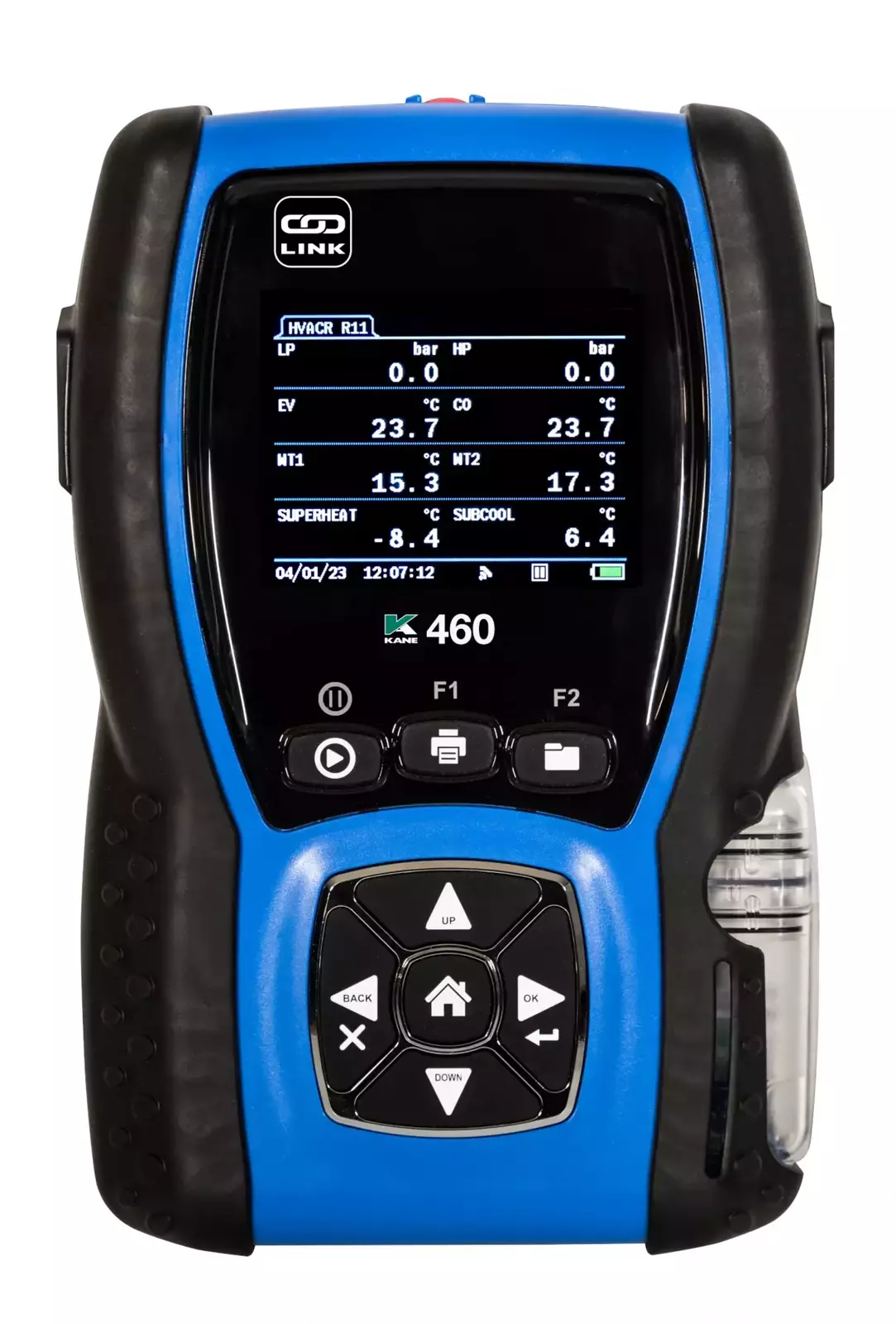

KANE460
HVACR analyser - Heating, Cooling, Refrigeration & IAQ
Heating, Cooling, Refrigeration & IAQ Analyser
- Test domestic & commercial heating & hot water systems
- Commission boilers, perform sweep & room CO migration tests
- Commission & test heat pumps, A/C & refrigeration systems - No manifold & hoses required
- Measure building IAQ & ventilation
- KANE LINK wireless measurements
- O2 & CO with NOx option
- 2 psi / 160 mbar pressure sensor for flue draught, system & tightness tests
- Hydrophobic water trap stops vapour damage
- Log, store & transfer tests to KANE LIVE App
- Fast & easy operation with large colour graphic display & rugged, compact design
Features
10 year warranty when serviced & recertified by KANE
Backed by KANE CARE - We promise to never let you down or your money back
KANE460 supplied with CP2 combustion probe, 2 psi pressure sensor & hose, CU12VDC2A21 charger, MSC00017 handset pouch
KANE460 HVACR KIT option includes:
KANE-DTHA2 anemometer & 20128 extender
KANE-HUB4 kit with 2 × WPCP wireless temperature clamp probes & 2 × WPP wireless pass through pressure probes
KANE-IRP3 Infra-red printer & 20106 backpack
Applications
- Test domestic & commercial gas, oil & biomass appliance performance & safety
- Perform structured let by, tightness & flue draught tests
- New boiler structured commissioning test
- Appliance sweep test for CO leaks
- Simultaneous 4 room CO migration test with up to 4 KANE79 wireless CO monitors (option)
- Heat pump temperature differential test
- A/C & refrigeration superheat & subcool test
- Building ventilation & IAQ test with KANE-DTHA2 wireless anemometer for airflow, temp & R
Measures
- O2 0-21%
- CO 0-10,000ppm H2 compensated with over range protection
- NO 0-5,000ppm (option)
- Temperature - inlet / flue gas / differential / ambient
- High accuracy differential pressure meter +/- 160mbar
Calculates
- CO2 - 0-99%
- CO/CO2 ratio
- Excess air
- Combustion efficiency
- NOx (if NO sensor fitted)
- A/C & Refrigeration subcool & superheat
Fuel Types
- 12 standard fuels including: Natural Gas, LPG, Butane, Propane, Light Oil, Heavy Oil, plus 5 user fuels
- 40 refrigerants including: R22, R32, R134a, R290 & R410A

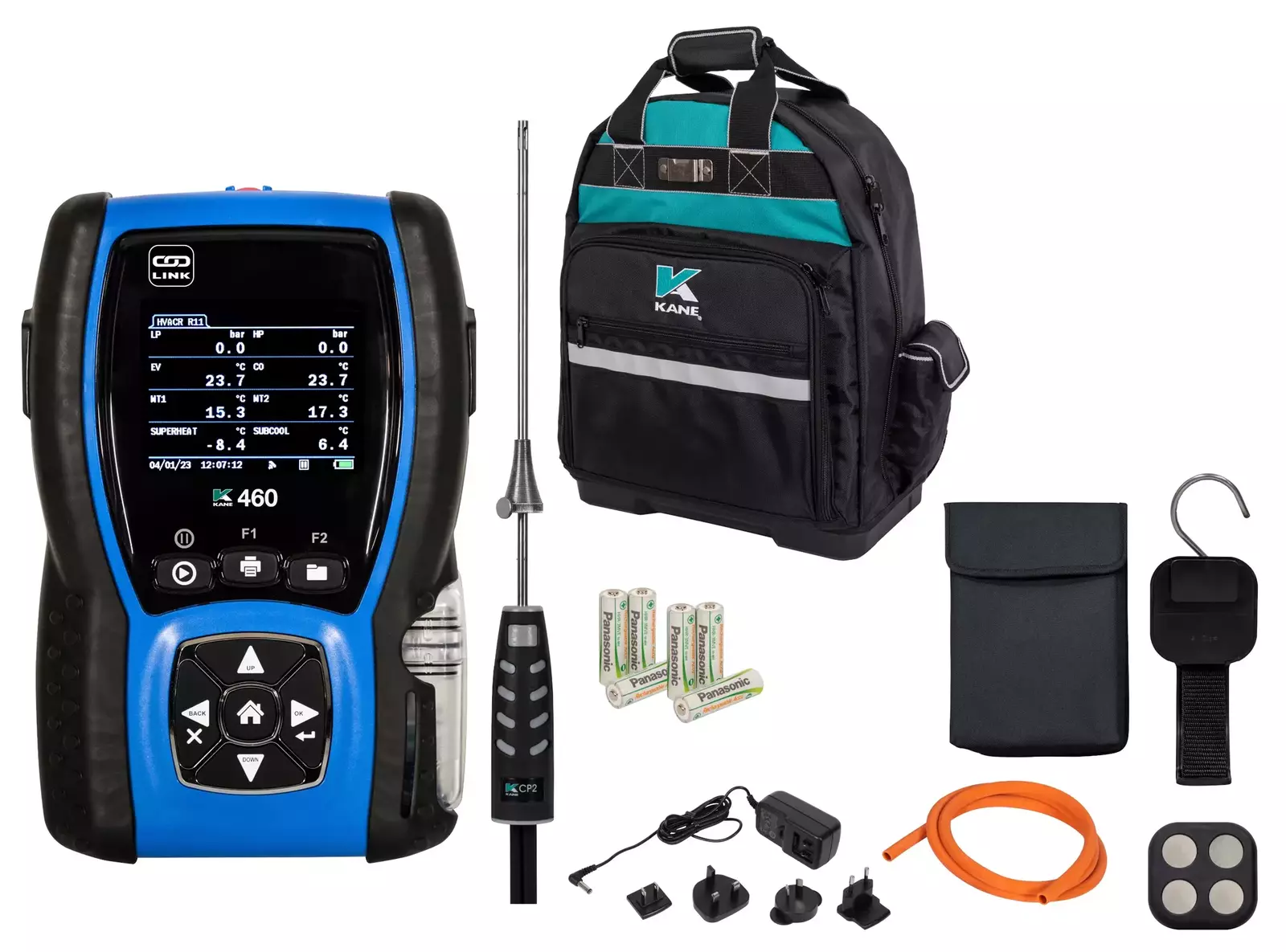

Box Contents
Supplied with pressure hose, CP2 probe, MSC00117 protective pouch & CU12VDC2A21 charger
Optional HVACR KIT kit enables wireless A/C & Refrigeration & IAQ tests
Option to link up to 4 KANE79 CO monitors for simultaneous room CO migration tests
Videos
KANE460 - Checking and Replacing the Watertrap
KANE460 - Checking the Watertrap and Filters
KANE460 - Connecting a Probe
KANE460 - Connecting to Link Devices
KANE460 - First Charge
KANE460 - Setting the Time and Date
Service Price
| YEAR 1 | YEAR 2 | YEAR 3 | YEAR 4 | YEAR 5 |
|---|---|---|---|---|
| £195 | £195 | £195 | £195 | £295 |
Calibration or Conformity Certificates included, as appropriate
